Background
Silos are one of the harshest industrial environments, with dust and contamination nearly impossible to avoid. LV Logics has developed the only self-cleaning silo monitoring solution in the world. While the sensor is located in the silo, a completely weatherproof enclosure was needed on the exterior. The monitoring solution needed to function without servicing for 10-15 years and maintain a seal to a large hole drilled in the silo skin without failing, and in all weather conditions.
Design Solution

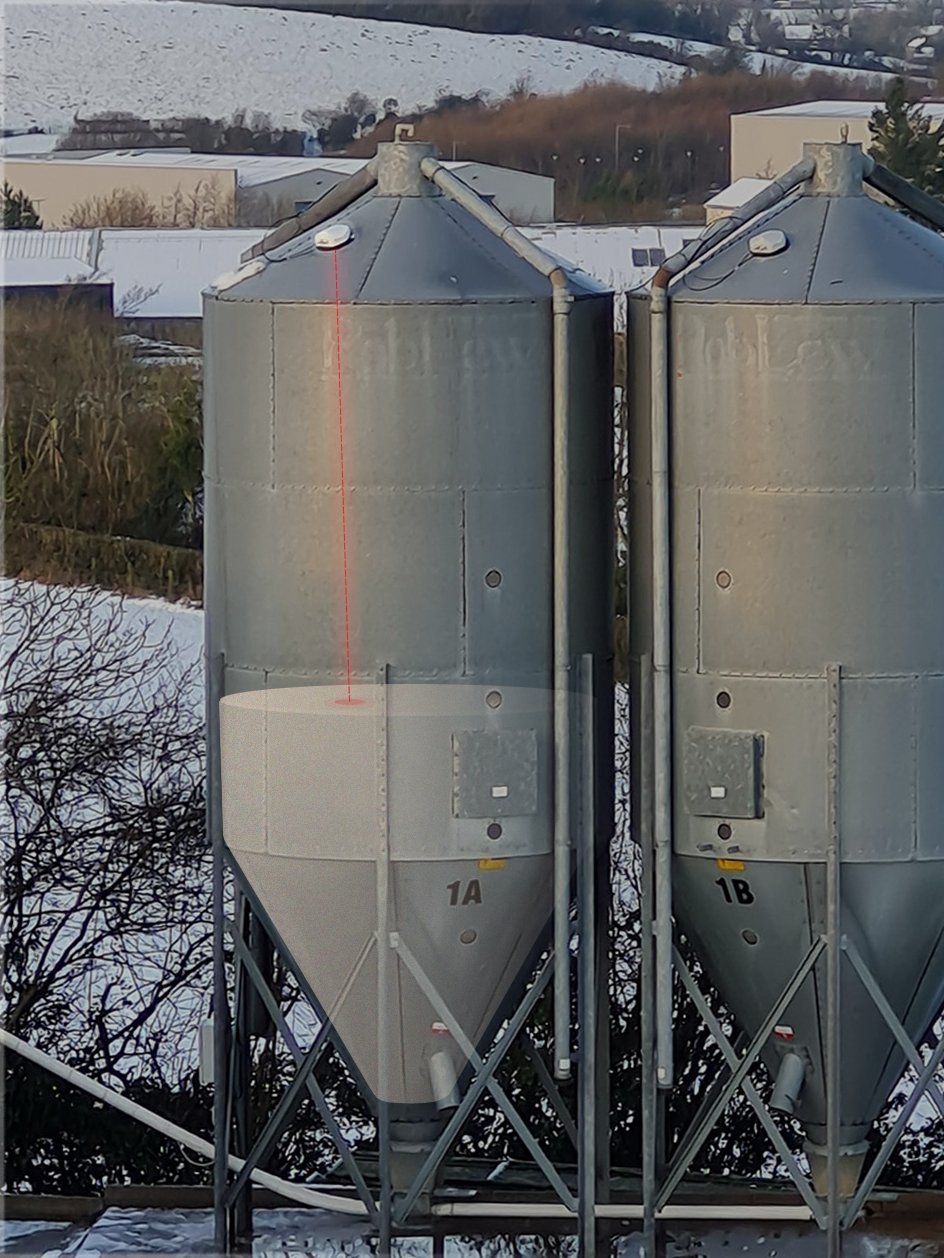

All power and air systems are located at the base of the silo, once fitted all servicing can be done on the ground, there is no need to ever climb the silo again.

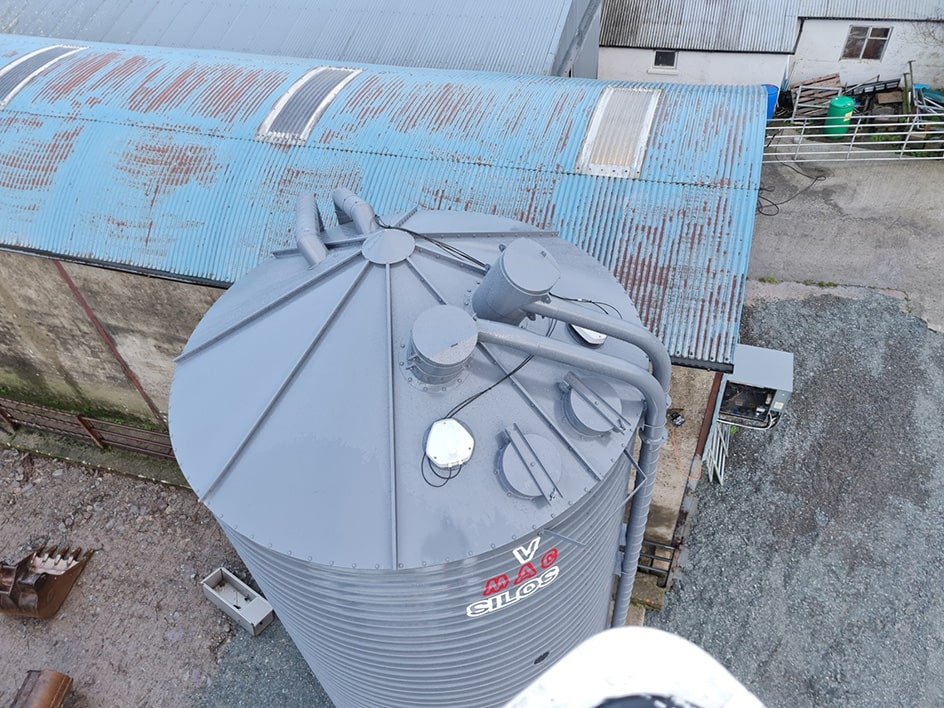

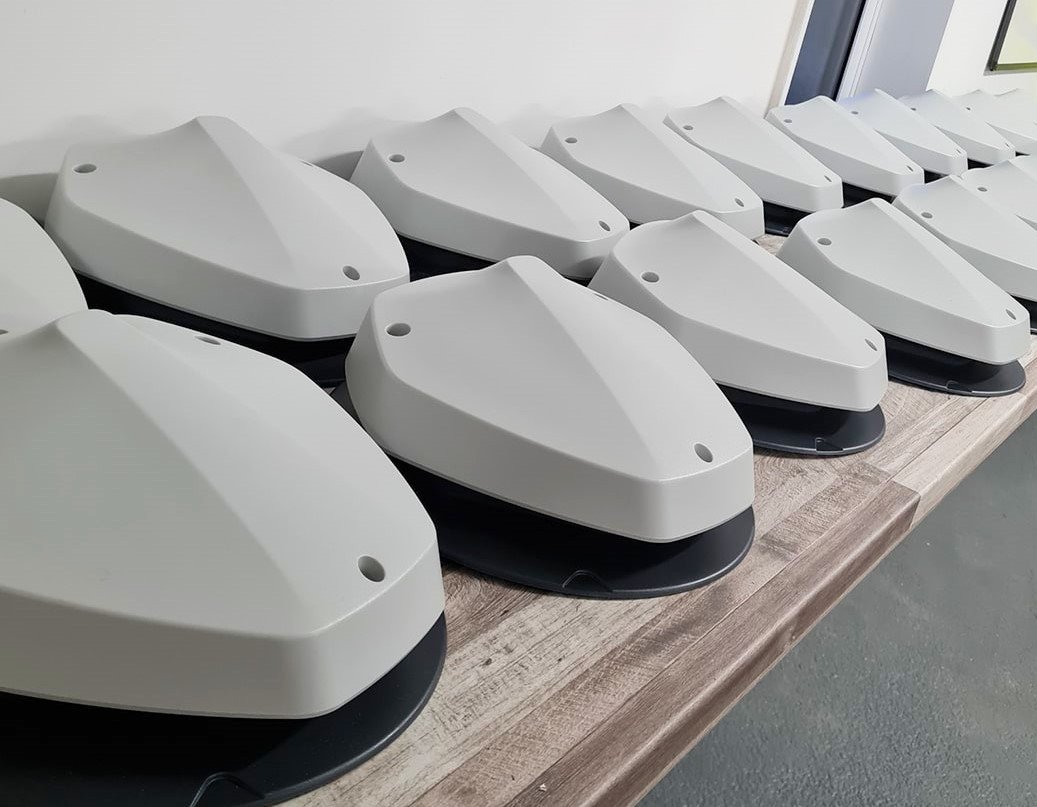

The device seems to float above the silo, this brings the seals up under the enclosure and out of the direct force of rain and wind. The shape recalls a clam attached to a rock, hanging on in a harsh environment.
There are three important seals in the product, the enclosure of the IOT components, the enclosure to the mounting ring, and the seal of the whole device to the silo through a 4” hole. The sensor projects through into the silo itself, and has an air system to clean the sensor when too much dust is present. The angle and rotation can be easily set through the drilled hole.

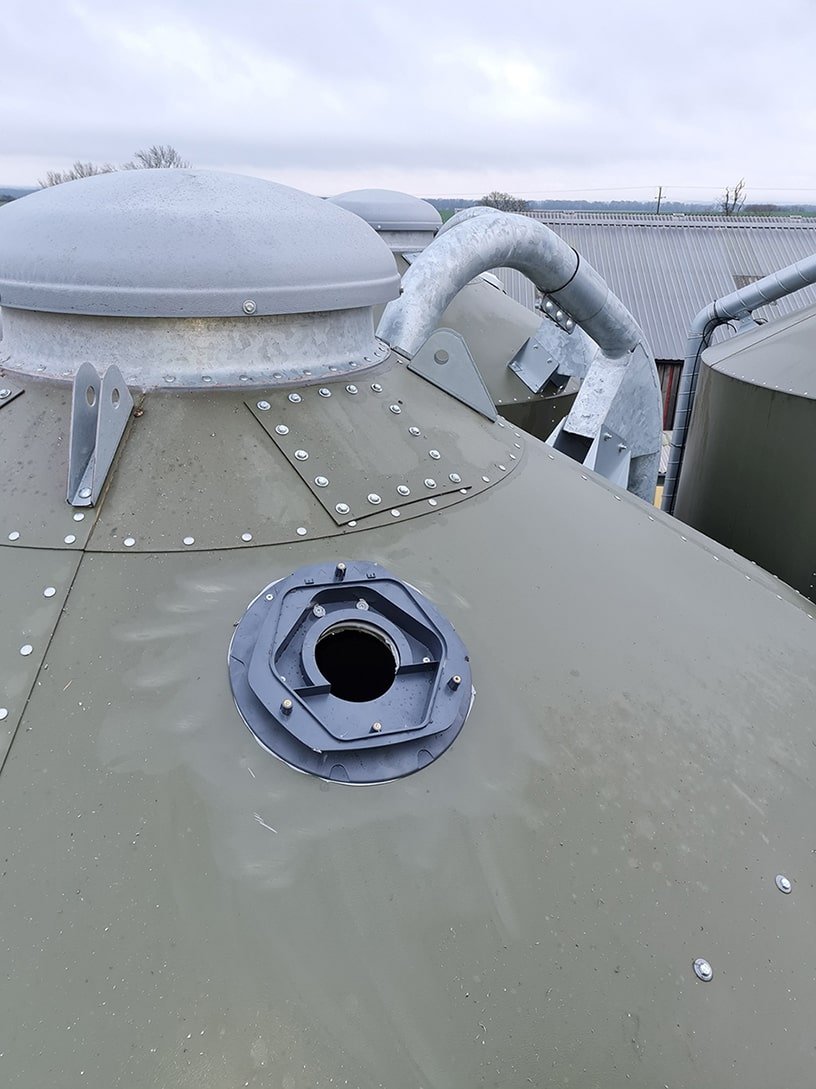

Silos are manufactured with different conical tops, and in different materials, so creating a consistent seal every time was a challenge. The base moulding was developed with a semi-flexible skirt with a double butyl ring to seal to any surface. This moulding is attached first, then the sensor can be fitted and rotation and angle aligned. The main enclosure can then be fitted, sealing the system.
